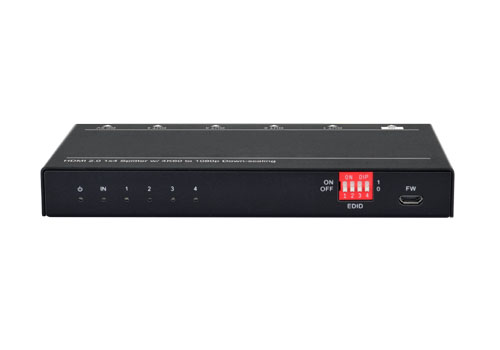

MP-DA4UHD-H2 is a HDMI V2.0 1×4 Splitter, which can distribute one HDMI input to four outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIPswitch on the front panel. Moreover, the splitter supports convenient firmware upgrade through Micro-USB port.
| Video Input | |
| Input | 1 x HDMI |
| Input Connector | 1 x Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.3, 1.4 compliant |
| CEC | Supported |
| Video Output | |

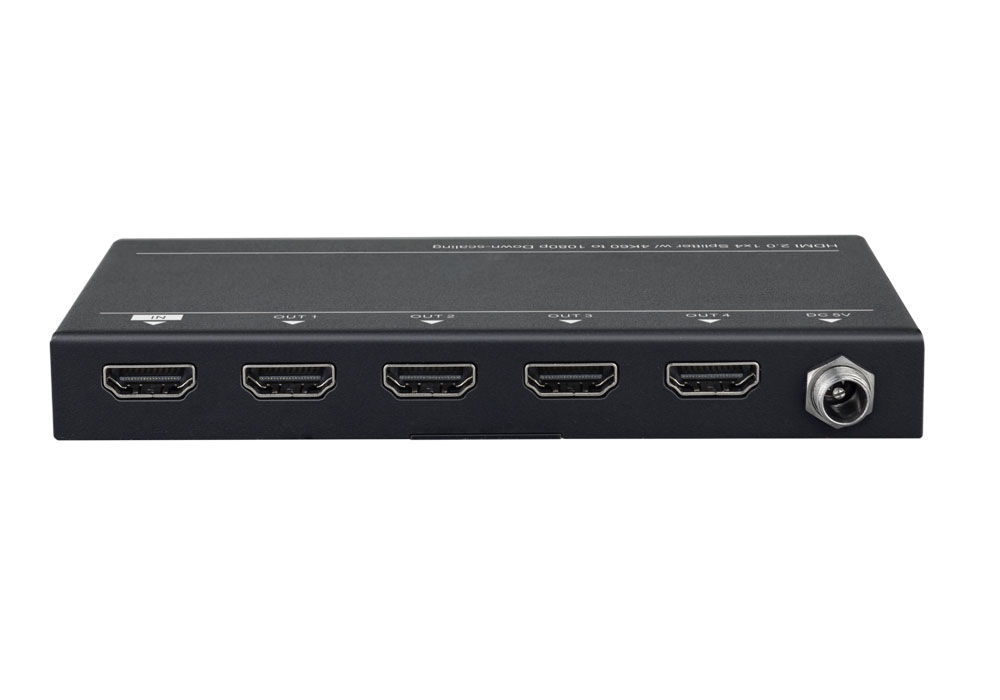

| Output | 4 x HDMI |
| Output Connector | 4 x Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 8bit |
| HDMI Output | Supports up to 5V 200mA power for AOC cable |
| HDMI Standard | 2.0 |
| HDCP Version | 2.3, 1.4 compliant |
| CEC | Supported |
| Control | |
| Control Part | 1 x EDID 4-pin DIP switch, 1 x Micro-USB port |
| General | |
| Bandwidth | 18Gbps |
| HDMI V2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@ 60Hz 4:2:0 ≤ 15m, 1080p ≤ 20m |
| Operation Temperature | -5 to +55℃ (+23° to +131°F) |
| Storage Temperature | -25 to +70℃ (-13° to +158°F) |
| Relative Humidity | 10% to 90%, Non-condensing |
| Power Supply | Input:100V~240V AC, Output: 5V DC 1A |
| Power Consumption | 2.5W (Max) |
| Dimension (W*H*D) | 142.0mm x 17.6mm x 70.4mm |
| Net Weight | 260g |
