Easy content sharing for huddle and small spaces
- Inspire and engage with wireless presentation to any screen
- Add digital signage capabilities in any huddle space
- Enhanced security, cloud managed and connected solution
- ClickShare Button sold separately
Easily share content from your device
Start a meeting within seconds. Anyone, including guests, can share content wirelessly to the central room display in full HD. With just one click in the ClickShare App, from any laptop (Pc or Mac) or mobile device for better workflow integration. Or with the ClickShare Button if you prefer a Plug&Play solution (sold separately). No cables, no training needed.
With full BYOD support on a 4K canvas, our wireless presentation solution drives an easy hybrid collaborative experience in all your enterprise meeting rooms to make your content stick. We support screen mirroring with Airplay, GoogleCast and Miracast.Enjoy advanced collaboration features like view the room display on your own device or decide what you share, either your full screen or a single window.
Designed for enterprise rollouts, the IT-grade C-5 offers you enhanced security features (ISO27001 certified) and a wide range of connectivity options. With the XMS Cloud Management Platform you enjoy remote management of units and clear analytics to drive your digital workplace. For practical questions on network deployment of the ClickShare Conference range, check our technical support or get in touch with your Barco contact.
Specifications
| Specifications | Details |
|---|---|

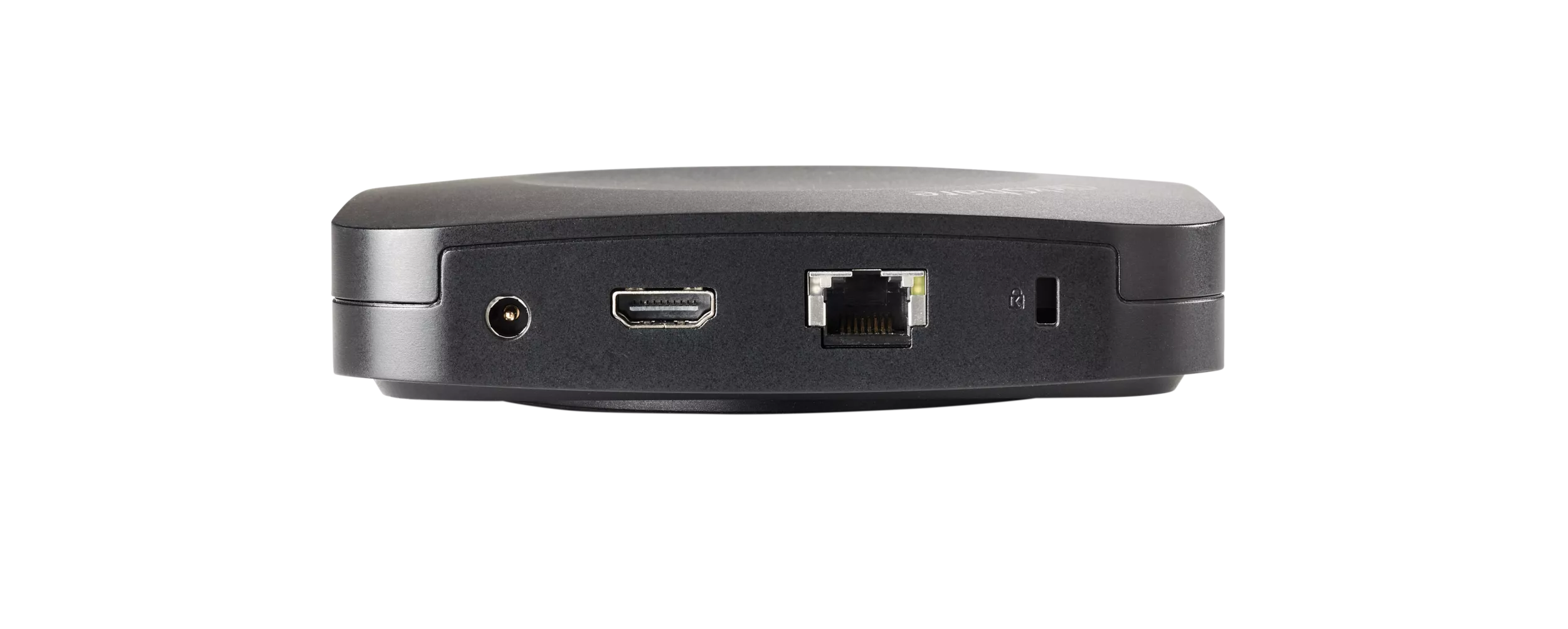

| ClickShare Base Unit dimensions | Dimensions (HxWxD): 34 mm x 135 mm x 135 mm |
| Power supply | Standard: 110/220 V AC plug or USB-C (only Gen2) |
| Power consumption | Operational: 5-10W, Max 24W |
| Weight | 900 gr |
| General specifications | |
| Operating system | Windows 10 and higher macOS 11 (Big Sur) and higher Android v9 and higher (ClickShare App)* iOS 12 and higher (ClickShare App)* |
| Video outputs | 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2) |
| Audio output | HDMI USB 1 X USB-A, 1 X USB-C |
| ClickShare Buttons | 0 |
| ClickShare App | Desktop & Mobile Native protocols Airplay, Google Cast, Miracast |
| Maximum number of simultaneous connections | 32 (with Buttons and/or App) |
| Noise Level | Max. 25dBA @ 0-30°C Max. 30dBA @ 30-40°C |
| Authentication protocol | WPA2-PSK in standalone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode |
| Wireless transmission protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 Reach Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHz and 5 GHz Frequency band 2.4 GHz and 5 GHz (DFS channels supported in select number of countries) |

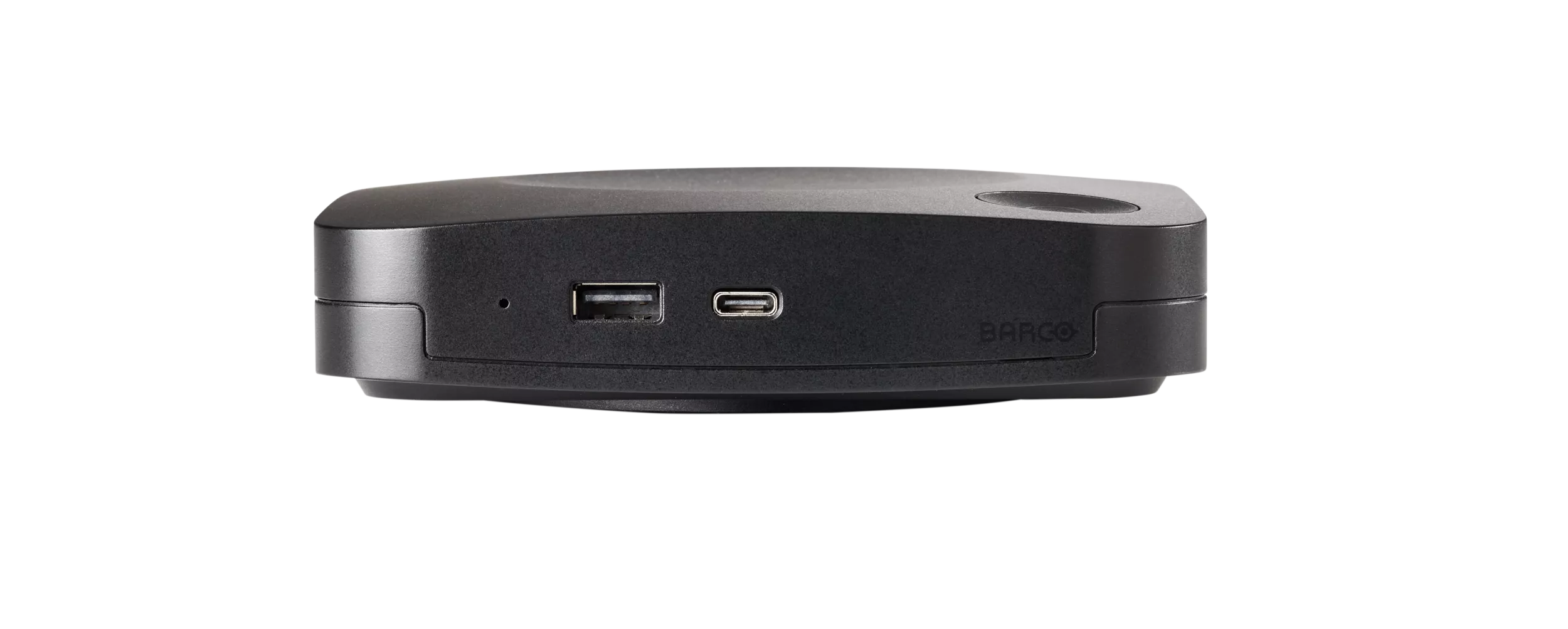

| Connections | 1x Ethernet LAN 1Gbi 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) – only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front) |
| Temperature range | Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F) |
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Anti-theft system | Kensington lock |
| Certifications | FCC/CE |
| Touch screen support & Interactivity | – |
| Room Dock (peripheral support) | No |
| Local view | Local view of the room display only |
| Network connection | LAN & WiFi |
| Management and reporting | Yes |
| Warranty | 1 year standard. 5 years coverage via SmartCare |
| * | depends on configuration, available in future firmware updates |
