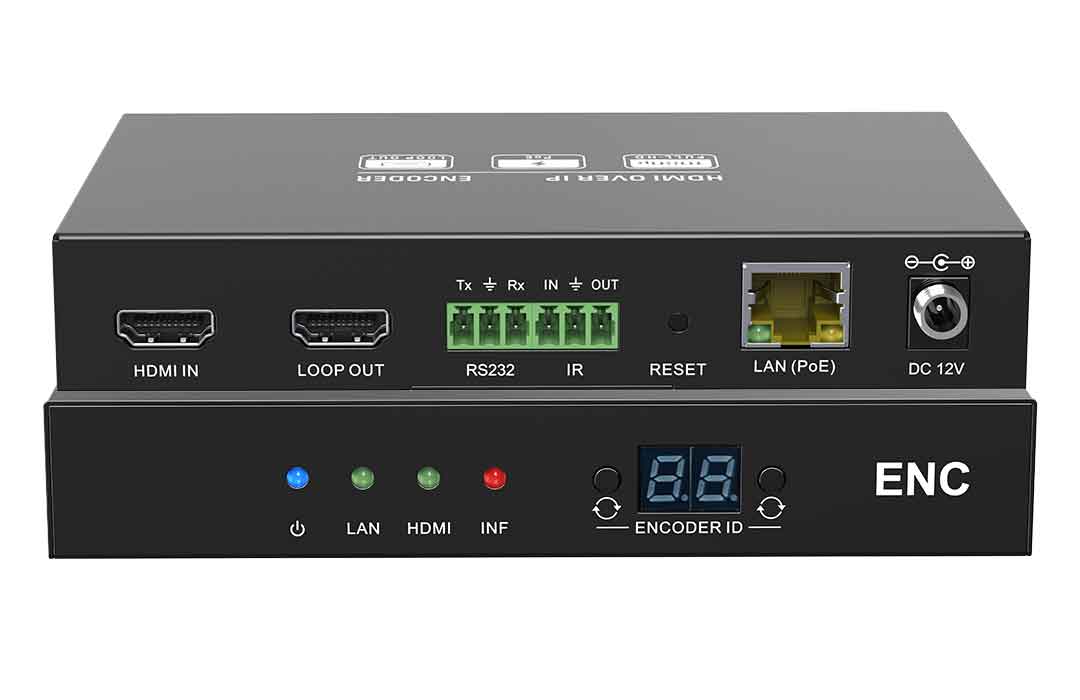

MP-IP200 is an IP Streaming Encoder/Decoder which use H.264 or H.265 standard to extend HDMI video, IR and RS232 control signals over IP network. It works with one control PC (Wake on LAN) and one switch whose transmission rate is 100Mbps or higher to control a variety of functions. It features 1080p HDMI video switching, video live preview, audio de-embedding, IR&RS232 transmission, PoE, etc. The control software “DVSTool” merge all functions for user control the IP streaming system.
| Video Input | (1) HDMI In |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 |
| Video Output | (1) HDMI Out |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 |
| Control | (1) RS232, (1) IR, (1) LAN (PoE) |
| Control Connector | (1) 3-pin terminal block, (1) 3-pin terminal block, (1) RJ45 |

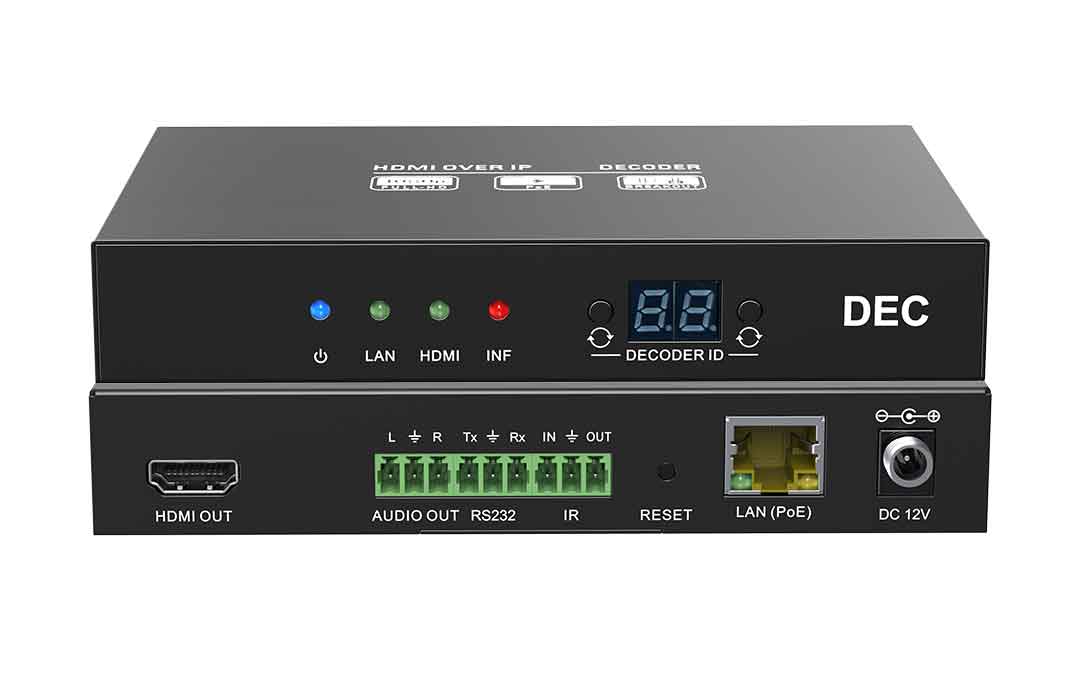

| MP-IP200D | |
| Video Output | (1) HDMI Out |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 1080p@60Hz 444 |
| Audio Output | (1) Audio Out (L+R) |
| Audio Output Connector | (1) 3-pin terminal block |
| Control | (1) RS232, (1) IR, (1) LAN (PoE) |
| Control Connector | (1) 3-pin terminal block, (1) 3-pin terminal block, (1) RJ45 |
| General | |
| Video Encoding Standard | H.265 |
| CAT-5E Cable Length | Up to 180 meters |
| External Power Supply | 12V DC 1A; PoE supported |
| Power Consumption | Encoder:5W (Max); Decoder:2W (Max) |
| Operation Temperature | -5 ~ +55 |
| Storage Temperature | -25 ~ +70 |
| Relative Humidity | 10%-90% |
| Dimension (W*H*D) | 150.0mm x 25.0mm x 100.0mm |
| Net Weight | Encoder:355g, Decoder: 355g |
