UHD Signage Display with LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform

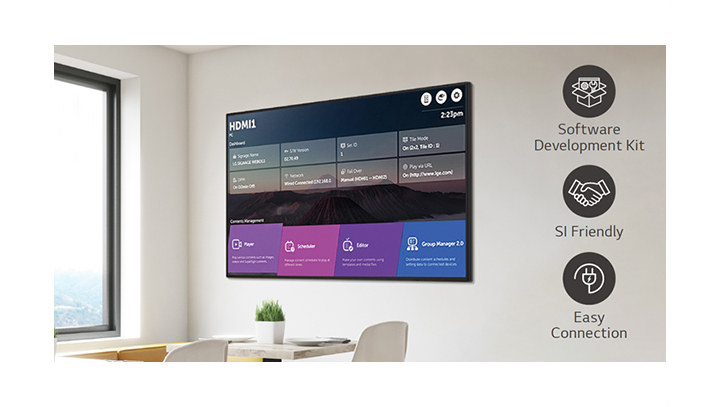

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Design for Space Utilization
Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Enhanced Security Features
The UM5N-H provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
| Panel | |
| Screen Size | 55″ |
| Panel Technology | IPS |
| Back Light Type | Direct |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (4K UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nit |
| Contrast Ratio | 1,100 : 1 |
| Dynamic CR | 1,000,000 : 1 |
| Color Gamut | BT709 95% |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.07 Billion Colors (10 bit (D)) |
| Response Time | Tr : 8ms / Tf : 10ms |
| Surface Treatment (Haze) | 28% |
| Life Time (Min.) | 50,000 Hrs |
| Operation Hours | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| Mechanical Specification | |
| Bezel Color | Black |
| Bezel Width | 12.4 mm (T/B), 11.4 mm (R/L) |
| Weight (Head) | 14.2 Kg |
| Packed Weight | 18.9 Kg |
| Monitor Dimensions (W × H × D) | 1,237 x 710 x 57.7 mm (Without IR) |
| Carton Dimensions (W × H × D) | 1,360 × 810 × 162 mm |
| Handle | No |
| VESA™ Standard Mount Interface | 300 × 300 mm |
| Key Features | Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor (External IR), Acceleration (Gyro) Sensor), Local Key Operation, Built-in Speaker, webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Image (Booting Logo Image, No Signal Image), Sync (RS-232C Sync, Local Network Sync), PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco Certi, Crestron Connected®), Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro |
| Environment Conditions | |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power | |
| Power Supply | AC 100-240 V ~, 50/60 Hz |
| Power Type | Built-In Power |
| Power Consumption | Typ./Max.: 130 W / 180 W<br>Smart Energy Saving (70%): 91W<br>DPM: 0.5W<br>Power off: 0.5W |
| BTU (British Thermal Unit) | 444 BTU/Hr (Typ.), 614 BTU/Hr (Max) |
| Certification | |
| Safety | CB / NRTL |
| EMC | FCC Class “B” / CE / KC |
| ePEAT (US Only) | No |
| ErP / Energy Star | Yes (NewErP) / Yes |
| ISTA6 | Yes (US Suffix Only) |
| Carbon Trust | Yes (~Sep. 23y, CO2 Measured) |
| OPS Compatibility | |
| OPS Type Compatible | No |
| OPS Power Built In | No |
| Software Compatibility | SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare |
| Connectivity | HDMI In (3, 3,840 × 2,160 @ 60Hz, HDCP 2.2/1.4) DP In (3,840 × 2,160 @ 60Hz, HDCP 2.2/1.3) RS-232C In (4 Pin Phone-jack) RJ45 (LAN) In IR In USB In 2.0 (Type A) |
| Output | HDMI Out (1, 3,840 × 2,160 @ 30Hz, Input: HDMI1/2/3/DP) |
| Language | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic |
| Accessory | Basic: Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender Optional: Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S) |
| Special Feature | Tilt (Facedown): Yes (Max 30º degree, 40ºC temperature) IP Rating: IP5X Conformal Coating (Power Board): Yes |
