LG UHD Standard Signage Display – UH5J

₹1.00

  • Resolution: 3,840 × 2,160 (4K UHD)
  • Brightness: 500nit
  • Web OS  6.0
  • Software Compatibility :- SuperSign CMS
  • Connectivity hub featuring HDMI, DP, DVI-D, audio, RS232C, RJ45, IR, USB, and daisy chain compatibility for seamless integration.
  • Image Customization,Booting Logo Image, No Signal Image
  • 3rd Party Compatibility :- Crestron Connected

New High Haze UHD Standard Signage

Proper Display Brightness

With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.


High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.


Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.


Conformal Coating

You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

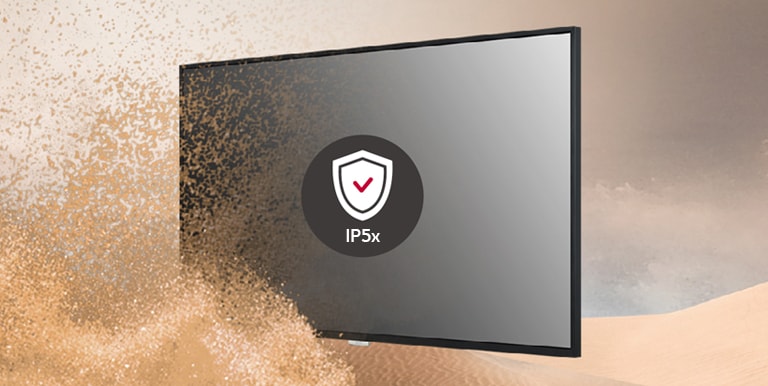

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

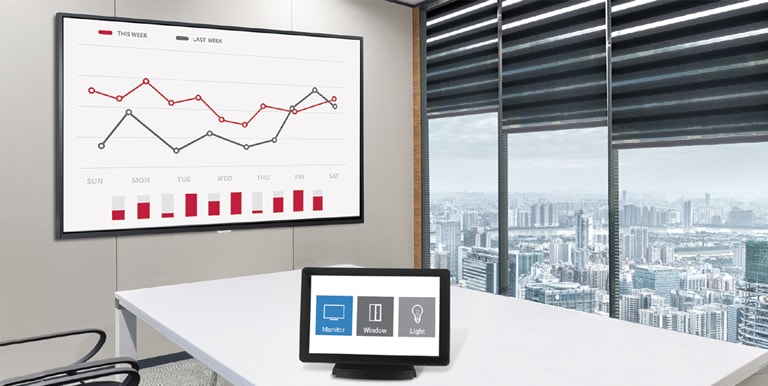

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

Specifications

Panel Specifications

Specification Detail
Screen Size 43″
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16 : 9
Native Resolution 3840 x 2160 (UHD)
Refresh Rate 60Hz
Brightness 500 nit (Typ.)
Contrast Ratio 1,200:1
Dynamic CR 1,000,000:1
Color Gamut BT709 95%
Viewing Angle (H x V) 178° x 178°
Color Depth 8 bits + FRC, 1.07 Billion colors
Response Time 8 ms (G to G)
Surface Treatment (Haze) 25%
Life Time 50,000 Hours (Min.)
Operation Hours (Hours/Day) 24/7
Portrait / Landscape Yes / Yes

Connectivity Specifications

Specification Detail
Input HDMI (3, HDMI1/HDMI2: HDCP 2.2/1.4, HDMI3: HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4-pin Phone-jack), RJ45 (LAN), IR IN, USB 2.0 Type A (1)
Output HDMI Out, Audio Out, RS232C OUT (1, 4-pin Phone-jack)

Mechanical Specifications

Specification Detail
Bezel Color Black
Bezel Width T/R/L: 8.4 mm, B: 14.4 mm
Weight (Head) 11.2 kg
Weight (Head + Stand) 11.8 kg
Packed Weight 13.7 kg
Monitor Dimension (W x H x D) 962.5 x 568.0 x 39.9 mm (with LG Logo)
Monitor Dimensions with Stand (W x H x D) 962.5 x 613.1 x 290.0 mm
Carton Dimensions (W x H x D) 1060.0 x 660.0 x 152.0 mm
VESA™ Standard Mount Interface 200 x 200

Key Features

Specification Detail
Key Features Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

Environment Conditions

Specification Detail
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %

Power Specifications

Specification Detail
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power

Power Consumption

Specification Detail
Typ. 80 W
Max. 120 W
BTU (British Thermal Unit) 273 BTU/Hr (Typ.), 410 BTU/Hr (Max.)
Smart Energy Saving (~70%) 56 W
DPM 0.5 W
Power Off 0.5 W

Sound Specifications

Specification Detail
Speaker Yes

Certification

Specification Detail
Safety CB / NRTL
EMC FCC Class “A” / CE / KC
ErP / Energy Star Yes (New ErP) / Yes

OPS Compatibility

Specification Detail
OPS Type Compatible Yes

Software Compatibility

Specification Detail
SuperSign CMS Yes
SuperSign Control / Control+ Yes / Yes
SuperSign WB Yes
SuperSign Media Editor Yes
Mobile CMS Yes
Signage 365 Care Yes

Language

Specification Detail
OSD English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic

Accessory

Specification Detail
Basic Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional Stand (ST-653T), Wall bracket (LSW240B), OPS Kit (KT-OPSF)

Special Feature

Specification Detail
Tilt (Face Down) Yes (Max 15º degree, 30ºC temperature, humidity 50%)
IP Rating IP5X
Size

43 Inch, 49 Inch, 55 Inch, 65 Inch, 86 Inch, 98 Inch
