LG VIDEO WALL DISPLAY

Artistic Immersion, Overwhelming Captivation

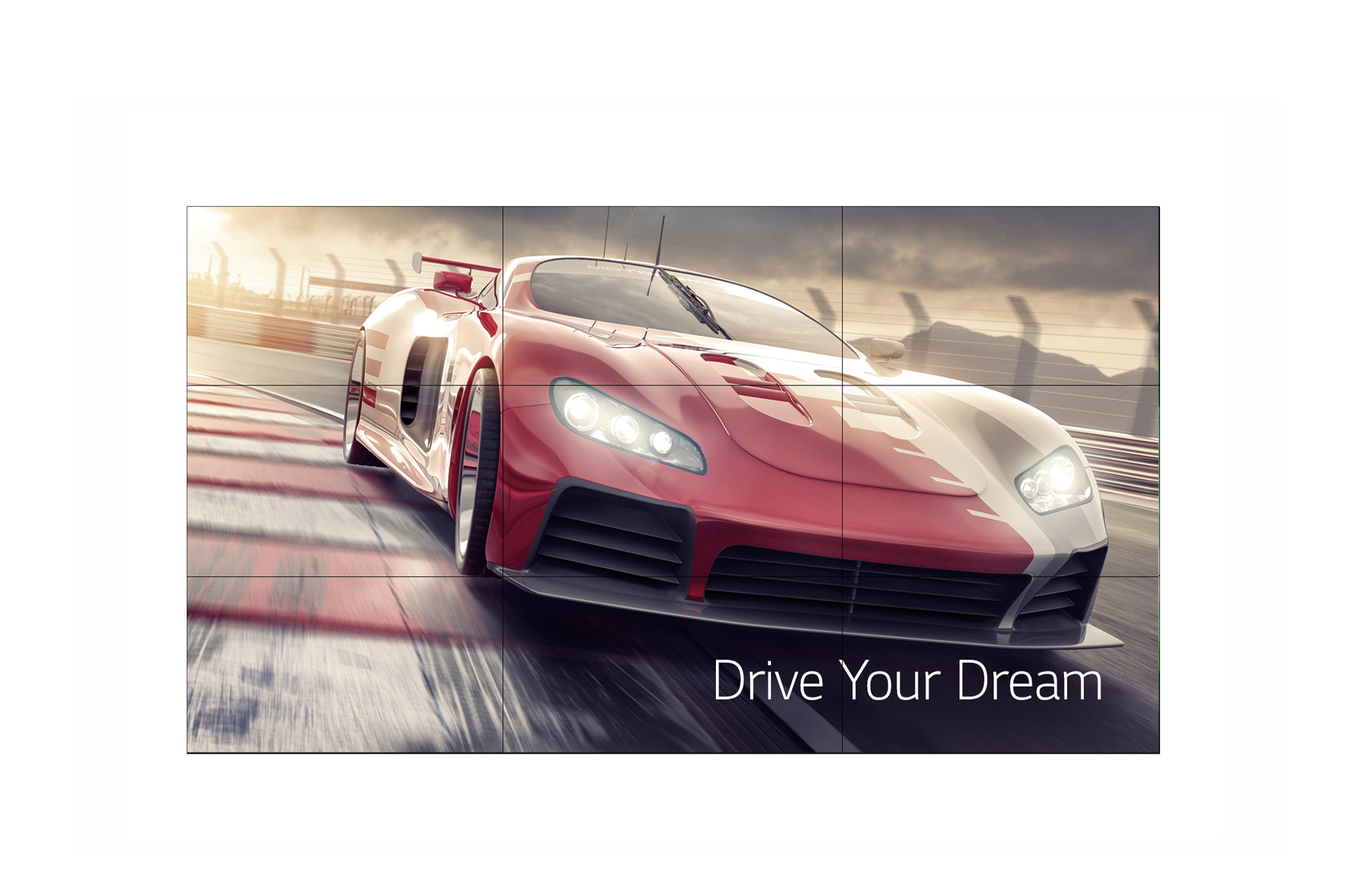

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

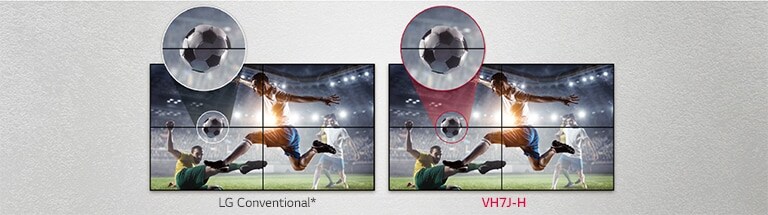

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

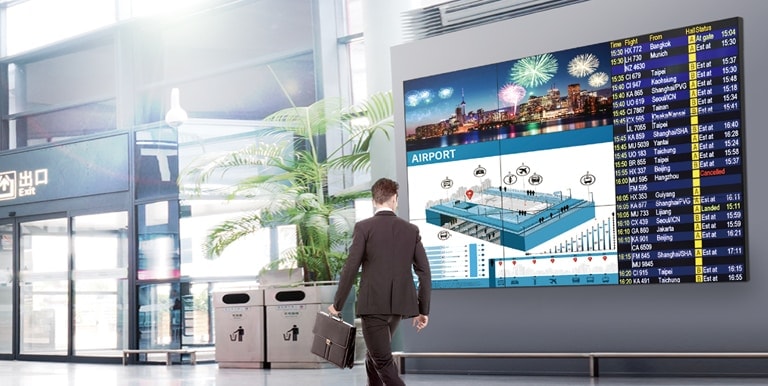

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

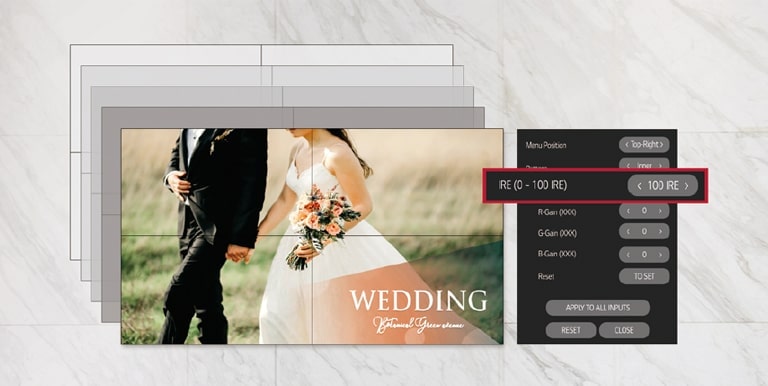

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

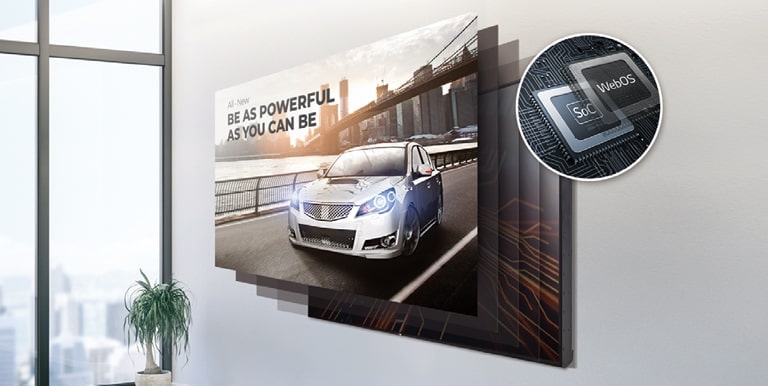

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

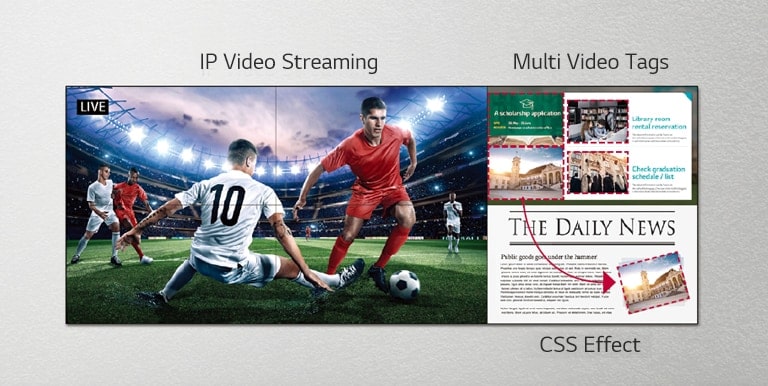

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.

tion of more viewers with lifelike colors, regardless of their viewing position.

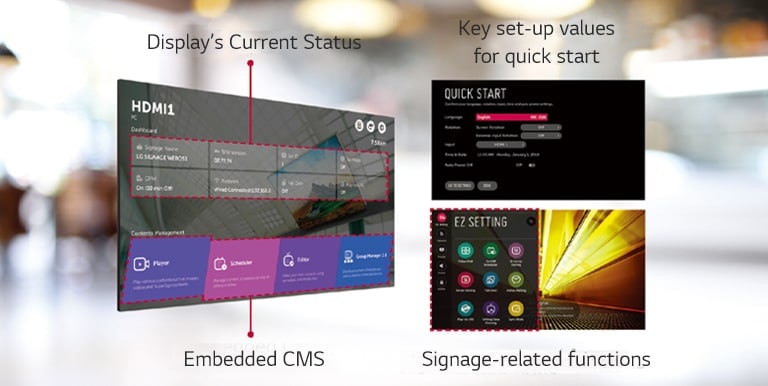

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

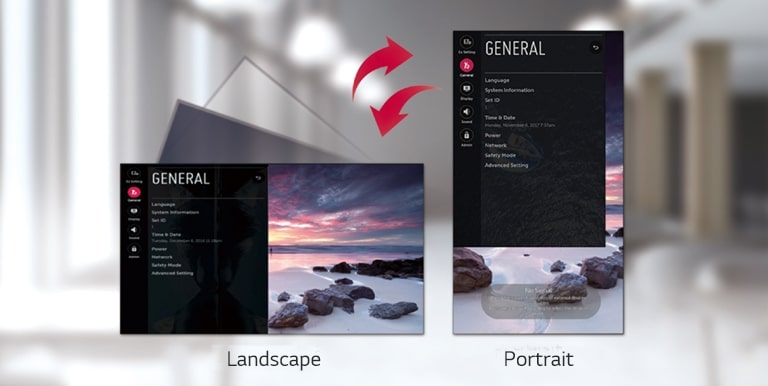

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.\

Conformal Coating

Video wall in various places can’t avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

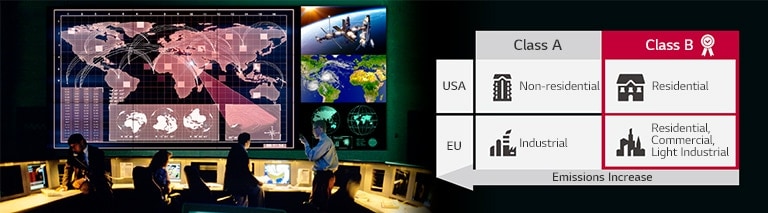

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

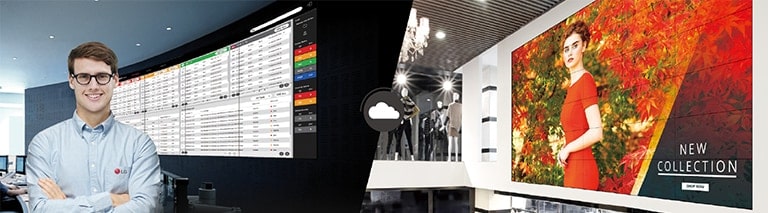

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.

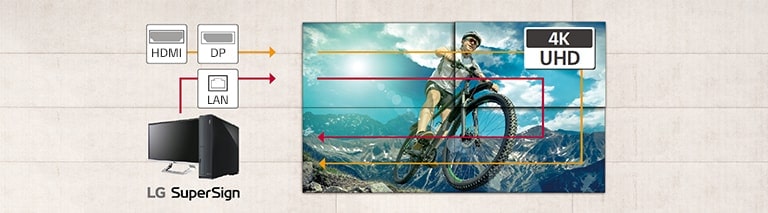

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Specifications

PANEL
Screen Size	139.7 cm (55)
Panel Technology	IPS
Aspect Ratio	16:9
Native Resolution	1,920 x 1,080 (FHD)
Refresh Rate	60Hz
Brightness	500 nits
Contrast Ratio	1,000:1
Dynamic CR	500,000:1
Color Gamut	NTSC 72%
Viewing Angle (H x V)	178° x 178°
Color Depth	10-bit, 1.07 Billion colors
Response Time	8 ms (G to G)
Surface Treatment (Haze)	28%
Life Time (Typ.)	60,000 Hrs
Life Time (Min.)	50,000 Hrs
Operation Hours (Hours/Days)	24/7
Portrait / Landscape	Yes / Yes
MECHANICAL SPECIFICATION
Bezel Color	Black
Bezel Width	B2B: 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) <br> A2A: 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head)	18.8 kg
Packed Weight	31.0 kg (when individual pallet applied)
Monitor Dimensions (W × H × D)	1,212.2 × 683.0 × 86.9 mm
Carton Dimensions (W × H × D)	1,353 × 855 × 263 mm (Box outer size)
Handle	Yes
VESA™ Standard Mount Interface	600 x 400
KEY FEATURE
HW	Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW	webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
CONNECTIVITY
Input	HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output	DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
ENVIRONMENT CONDITIONS
Operation Temperature	0°C to 40°C
Operation Humidity	10% to 80%
POWER
Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-in Power
POWER CONSUMPTION
Typ.	160 W
Max.	190 W
BTU (British Thermal Unit)	546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
Smart Energy Saving	90 W
DPM	0.5 W
Power off	0.5 W
CERTIFICATION
Safety	CB / NRTL
EMC	FCC Class “B” / CE / KC
ErP	Yes (EU Only) Energy Star 8.0
MEDIA PLAYER COMPATIBILITY
OPS type compatible	Yes (Piggyback)
SOFTWARE COMPATIBILITY
SuperSign CMS	Yes
SuperSign Control / Control+	Yes
SuperSign WB	Yes
SuperSign Media Editor	Yes
LG ConnectedCare	Yes
ACCESSORY
Basic	Remote Controller (includes battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional	OPS Kit (KT-OPSF)
