YOUR TICKET TO BOARDROOM PERFORMANCE.
Don’t just have a meeting. Experience a boardroom-quality performance. The Poly Studio X30 is an all-in-one video bar for huddle and small rooms. It’s radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. And wireless content sharing lets users collaborate from their devices without the need for cables or pucks.

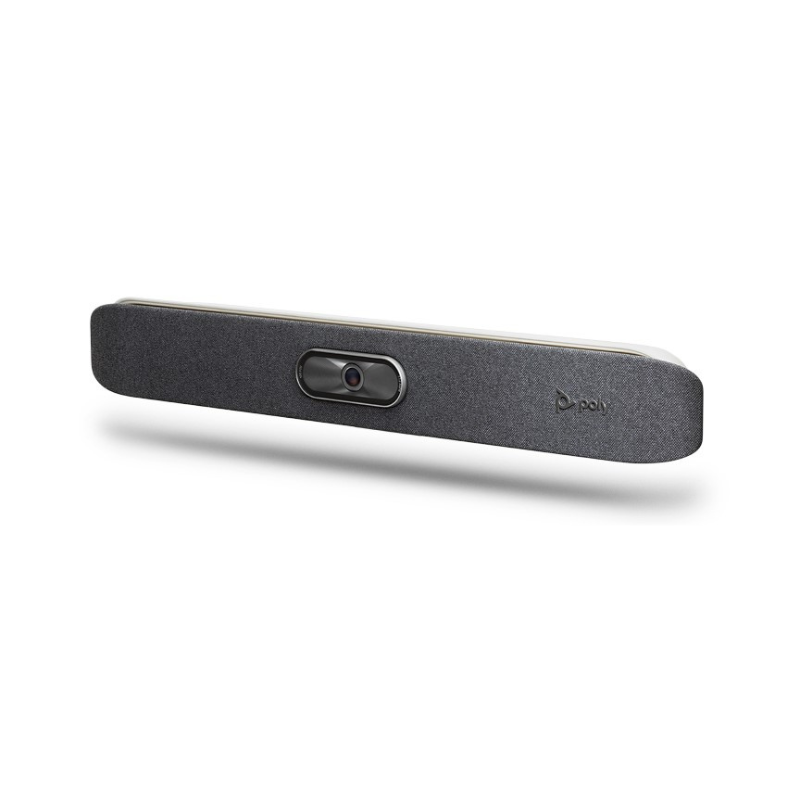

Poly Studio X30
We work everywhere you do
Poly Studio X30 is compatible with leading collaboration platforms.
Certified for Zoom
Powerfull Audio
Don’t let its small size fool you—Studio X30 has room-filling audio to ensure everyone can hear clearly.
Beamforming Microphone
Crisp, clear voice pickup so you can be confident you’re being heard, no matter where you sit.
Smart Camera
Automatic camera framing that keeps the visual focus in the right place.
Noise Blocking Innvocation
Poly NoiseBlockAI and Acoustic Fence block distracting noise and outside conversations.
Cloud video software built right in
No PC or Mac needed to quickly connect your favorite video platforms.

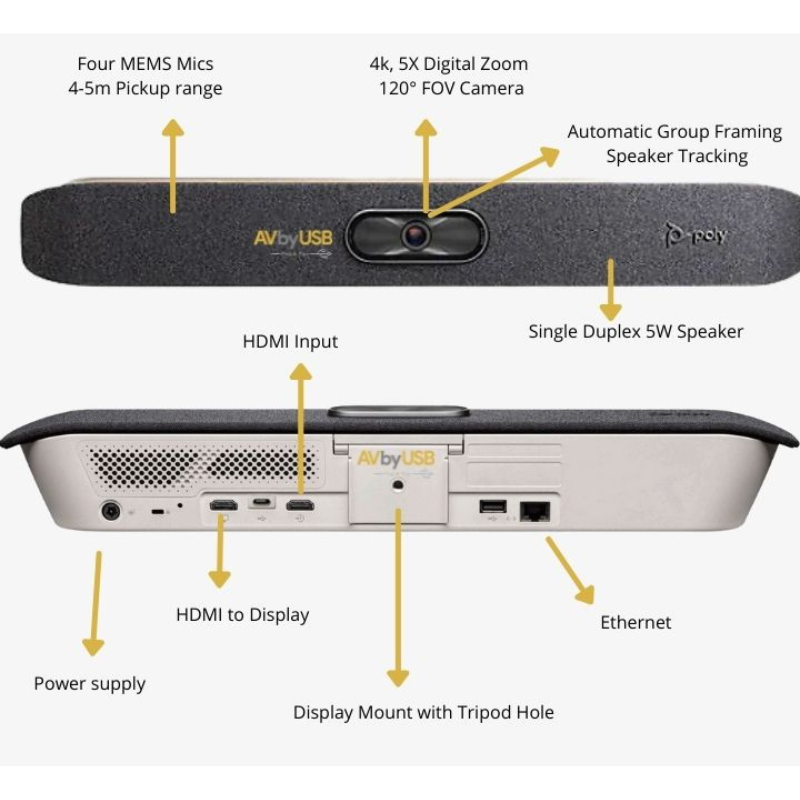

Specifications
| Category | Feature |
|---|---|
| Camera | |
| Zoom | 5x digital zoom |
| Field of View (FOV) | 120° |
| Resolution | UHD 2160p (4K) capture |
| Additional Features | Automatic people framing, Automatic speaker tracking |
| Audio Input | |
| Microphones | Four MEMS microphones |
| Pickup Range | 15 ft |
| Interface | USB Audio |
| Audio Output | |
| Speaker | Single speaker |
| Power Handling | 3W RMS, 5W MAX |
| Sensitivity | 80dB |
| Other Interfaces | |
| USB Ports | 1x USB-A (3.0), 1x USB-C |
| Wireless | Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency |
| Audio Standards and Protocols | |
| 22 kHz | Polycom Siren 22 technology |
| 20 kHz | G.719 (M-Mode), Polycom Siren 22 technology |
| 14 kHz | Polycom Siren 14 technology, G.722.1 Annex C |
| 7 kHz | G.722, G.722.1 |
| 3.4 kHz | G.711, G.728, G.729A |
| Dimensions | |
| Inches | 30 W x 4 H x 4 D |
| Millimeters | 762 W x 102 H x 102 D |
| Weight | 5.6 lbs / 2.54 kg |
| Video Standards and Protocols | |
| Standards | H.264 AVC, H.264 High Profile, H.265, H.239 |
| Video Input | |
| Ports | 1x HDMI |
| Video Output | |
| Ports | 2x HDMI |
| Compatibility | Touch display compatible |
| People Video Resolution | |
| 4K | 30 fps from 2048 Kbps |
| 1080p | 60 fps from 1740 Kbps, 30 fps from 1024 Kbps |
| 720p | 60 fps from 832 Kbps, 30 fps from 512 Kbps |
| Content Video Resolution | |
| Input Resolutions | UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600) |
| Output Resolutions | UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768) |
| Content Frame Rate | 5–60 fps (up to 4K resolution at 15 fps in call) |
| Content Sharing | |
| Apps | Poly content app, Apple Airplay, Miracast |
| Input | HDMI |
| Additional Features | Whiteboarding |
| Network | |
| Protocols | IPv4, IPv6 |
| Ports | 1x 10/100/1G Ethernet (Auto-MDIX) |
| Communication | H.323 and/or SIP up to 6 Mbps running Poly Video App |
| Technologies | Polycom Lost Packet Recovery (LPR), Dynamic bandwidth allocation, Reconfigurable MTU size, Web proxy support (Basic, Digest, NTLM), Simple Certificate Enrollment Protocol (SCEP) |
| Power Supply | |
| Type | Auto sensing power supply |
| Operating Voltage/Power | 37 VA @ 120 V @ 60 Hz, 37 VA @ 230 V @ 50/60 Hz |
| Typical BTU/h | 65 |
| Package Includes | |
| Items | Poly Studio X30, Cable bundle, Monitor clamp, Privacy cover |
| Optional Accessories | |
| Accessories | VESA mount kit, Stand, Poly TC8, Poly Bluetooth remote control, Poly Trio, Studio Extension Microphone, Inverted mount kit |
