| Feature | Description |
|---|---|
| Feature Changes | To manage supply chain challenges, the Core 110f no longer includes 16 x 16 GPIO, and the OLED display and 2x USB Type A ports have been replaced with a simplified, functionally similar solution. |
| Audio Channels | 128 networked audio channels (Q-LAN / AES67) |
| Analog I/O | 24 channels, including 8 configurable Flex channels |
| AEC Processors | 16x Acoustic Echo Cancellation processors |
| Network Microphone Support | Up to 4x Q-SYS NM-T1 network microphones |
| Dante Audio Channels | Up to 32 x 32 (8 x 8 included) |
| USB AV Bridging | 16 x 16 audio + Q-SYS camera support |
| Q-SYS Control Engine | Full-featured, with optional feature licenses |
| USB Audio Device Host | Supports external USB audio devices |
| VoIP Instances | Supports up to 4x VoIP instances |
| I/O Configuration | Core 110f offers 24 I/O + USB, POTS, and VoIP for cost-effective, single SKU, single chassis solutions |
| Flex Channels | 8 Flex Channels provide flexibility similar to card-based DSP solutions without custom ordering |
| QIO Series Support | Extend network I/O with models that support specific connectivity types, including mic/line audio and GPIO |
| IT Integration | Supports Layer 3 routing, LDAP integration, SNMP monitoring, cryptographically signed firmware, encrypted transport/storage |
| Software-Based Conferencing Technology | Includes AEC, SIP softphones, gain sharing, automixers, and role-based access controls |
| Unified Software Platform | Single software tool for scalable solutions, eliminating need to learn multiple platforms |
| Dante Support | Now supports software-based Dante on Core 110f |
| Frequency Response (Input) | 20Hz to 20kHz @ +21dBu, +0.05dB/-0.5dB |
| THD+N @ 1KHz (Input) | < 0.1% at +21 dBu Sensitivity & +21 dBu input; < 0.0015% at +21 dBu Sensitivity & +10 dBu input |
| Input Crosstalk @ 1kHz | >110dB typical, 90dB max |
| Dynamic Range (Input) | > 109.5dB at +21 dBu Sensitivity |
| Common Mode Noise Rejection | 56.5 @ +10 dBu Sensitivity; 73.2 @ -10 dBu Sensitivity |
| Impedance (Input) | 5K Ohms Nominal (balanced) |
| Input Sensitivity Range | -39 dBu min to +21 dBu max (1dB Steps) |
| Phantom Power | +48V DC, 10mA per input max |
| Sampling Rate | 48kHz |
| Converters | 24-bit A/D – D/A converters |
| Dimensions/Weight (Device) | Height: 44 mm, Width: 483 mm, Depth: 282.5 mm, Weight: 5 kg |
| Dimensions/Weight (Shipping) | Height: 152 mm, Width: 584 mm, Depth: 356 mm, Weight: 5.6 kg |
| Frequency Response (Output) | 20Hz to 20kHz, +0.2/-0.5 dB |
| THD (Output) | 0.003%, +10 dBu Max output level |
| Output Crosstalk @ 1kHz | >100dB typical, 90dB max |
| Dynamic Range (Output) | >108dB |
| Impedance (Output) | 220 Ohms (balanced) |
| Output Level Range | -39 dBu min to +21 dBu max (1dB Steps) |
| USB B | 16-bit, up to 16 x 16 channels, 48kHz |
| Power Consumption | 60 watts typical, 120 watts max |
| BTU/Heat Load | 205 BTU/hour |
| Compliance | FCC, CE, UL, RCM, RoHS, JATE, ANATEL, NOM-151-SCTI, PTC200, and more |
Network Amplifiers

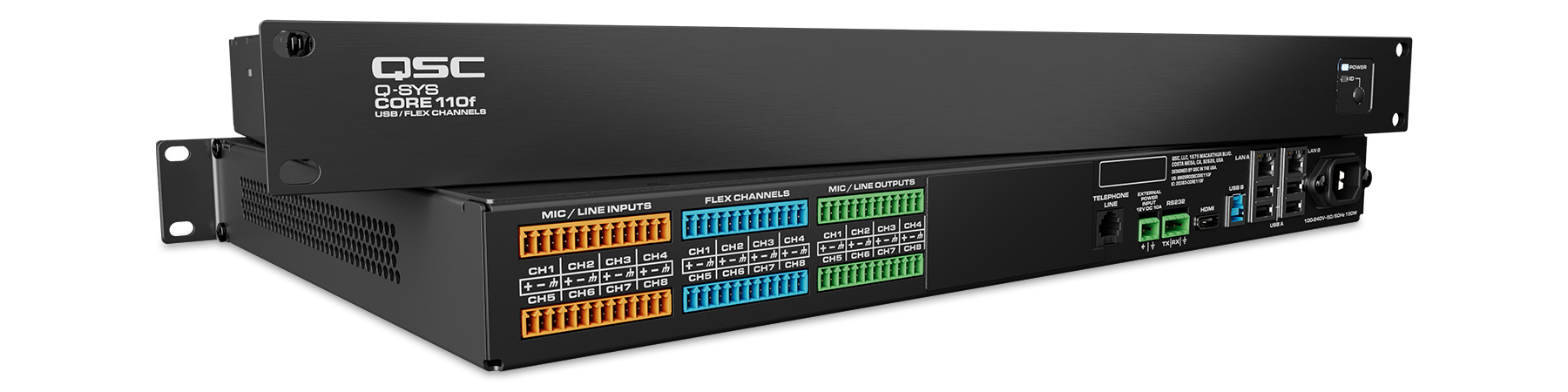

Processor QSC Core 110f
- The Q-SYS Core 110f provides 128 networked audio channels with 24 analog I/O, featuring 16x AEC processors and USB AV bridging capabilities.
- It supports up to 4x Q-SYS NM-T1 microphones and offers a cost-effective I/O configuration with 8 Flex channels for versatility.
- True IT integration allows for advanced functionality, including Layer 3 routing and software-based Dante support, ensuring seamless AV system performance.
- This device is designed for scalability and efficient system management.
