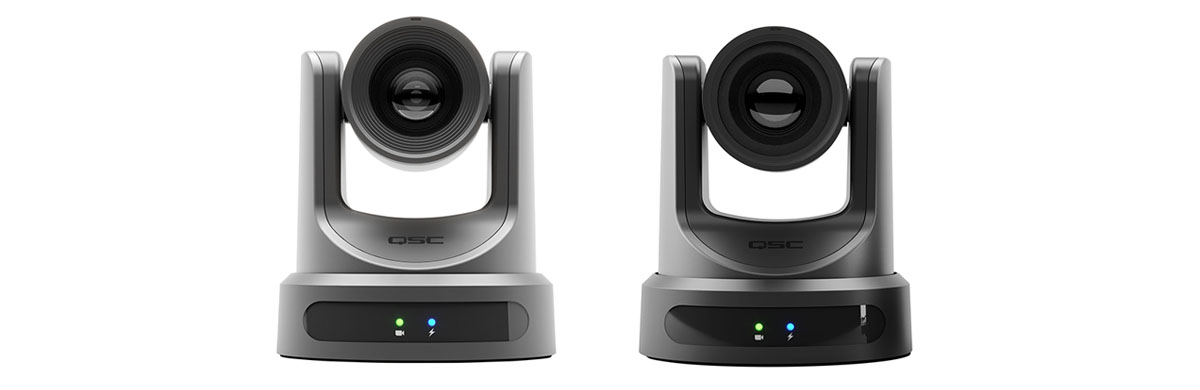

| Description | Network camera with motorized PTZ, 12x optical zoom and 80° field-of-view | Network camera with motorized PTZ, 20x optical zoom and 60° field-of-view |
| Image Sensor | 1/2.8” Low Noise CMOS | 1/1.8” Low Noise CMOS |
| Lens Characteristics (wide to tele) | 12x optical zoom, f=3.47 mm to 41.65 mm, F1.84 to F3.72 | 20x optical zoom, f=6.25 mm to 125 mm, F1.58 to F3.95 |
| Sensor Scanning Mode | Progressive | Progressive |
| Horizontal Rotation Range | ±170° | ±170° |
| Vertical Rotation Range | -30° to +90° | -30° to +90° |
| Pan Speed Range | 1.7° to 100°/s | 1.7° to 100°/s |
| Tilt Speed Range | 1.7° to 69.9°/s | 1.7° to 69.9°/s |
| Ceiling Mountable | Image rotation for ceiling mounting, ceiling mount bracket accessory PTZ-CMB1 sold separately | Image rotation for ceiling mounting, ceiling mount bracket accessory PTZ-CMB1 sold separately |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30 s to 1/1000 s | 1/30 s to 1/1000 s |
| White Balance | Auto, indoor, outdoor, one-push, manual, specified color temperature | Auto, indoor, outdoor, one-push, manual, specified color temperature |
| IP Stream Resolutions (Preview Window) | H.264 @ 360p, 270p or 180p | H.264 @ 360p, 270p or 180p |
| Supported Video Formats | | |
| HDMI 2.0 Output | • 4K @ 25, 29.97, 30 fps<br>• 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps<br>• 1080i @ 50, 59.94, 60 fps<br>• 720p @ 30, 50, 59.94, 60 fps | • 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps<br>• 1080i @ 50, 59.94, 60 fps<br>• 720p @ 50, 59.94, 60 fps |
| SDI-3G Output | • 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps<br>• 1080i @ 50, 59.94, 60 fps<br>• 720p @ 50, 59.94, 60 fps | • 1080p @ 25, 29.97, 30, 50, 59.94, 60 fps<br>• 1080i @ 50, 59.94, 60 fps<br>• 720p @ 50, 59.94, 60 fps |
| DC Power Input | 12 V (±20%), 12 W, JEITA connector | 12 V (±20%), 12 W, JEITA connector |
| Power Over Ethernet (PoE) | PoE Class 3 (Type 1) | PoE Class 3 (Type 1) |
| Power Consumption | 12.95 W Max | 12.95 W Max |
| Size | 6.7 x 7.95 x 5.6 inch (170 x 201 x 142 mm) | 6.7 x 7.95 x 5.6 inch (170 x 201 x 142 mm) |
| Net Weight | 3.5 lbs (1.6 kg) | 3.5 lbs (1.6 kg) |
