UHD Large Screen Signage Display with LG webOS Platform
Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
Panel
Screen Size 110″ Panel Technology ADS Back Light Type Direct Aspect Ratio 16 : 9 Native Resolution 3,840 x 2,160 (4K UHD) Refresh Rate 120 Hz Brightness (Typ.) 500 nit Contrast Ratio 1,200 : 1 Dynamic CR 1,000,000 : 1 Color gamut DCI-P3 88%↑ Viewing Angle (H x V) 178 × 178 Color Depth 1.07 Billion Colors (8 bits + FRC) Response Time 8 ms (G to G) Surface Treatment (Haze) 1% Lifetime 50,000(Typ.) Operation Hours (Hours / Days) 16 / 7 Portrait / Landscape No / Yes Mechanical Specification

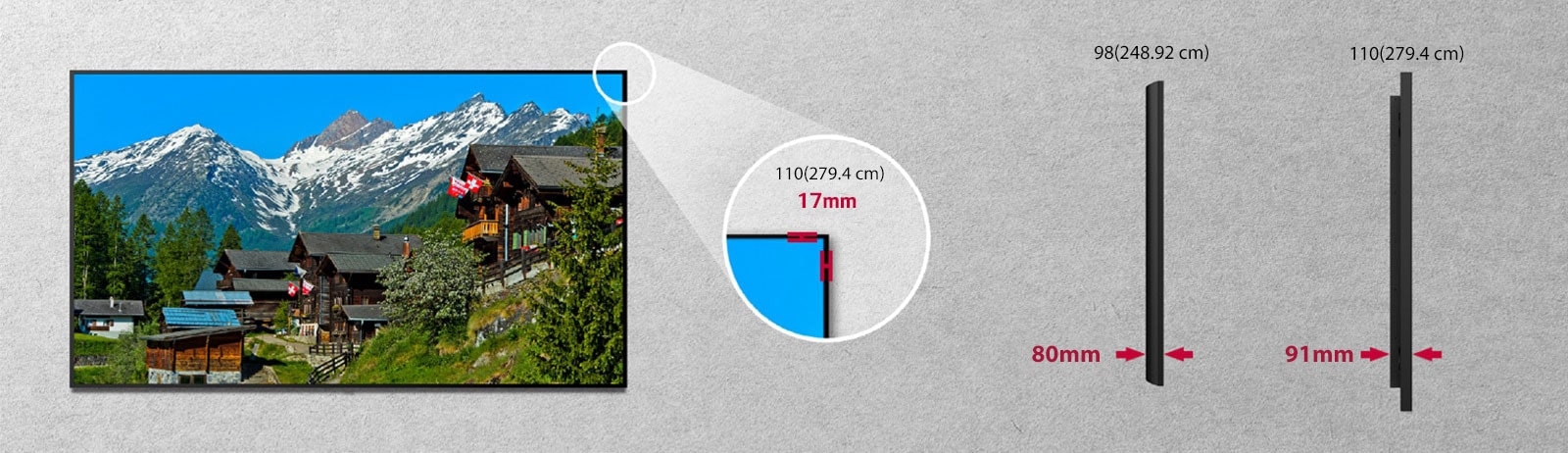

Bezel Color Black Bezel Width 17 mm (Even Bezel) Weight (Head) 80 kg Packed Weight 110 kg Monitor Dimensions (W × H × D) 2,474 × 1,408 × 99 mm Carton Dimensions (W × H × D) 2,680 × 1,730 × 320 mm Handle Yes VESA™ Standard Mount Interface 1,500 × 600 mm Key Feature (Hardware)
Internal Memory 16 GB Wi-Fi Built-in Wi-Fi Temperature Sensor Yes Auto Brightness Sensor Yes Acceleration(Gyro) Sensor Yes Local Key Operation Yes Power Indicator Yes Key Feature (Software)
webOS ver. webOS 6.0 Local Contents Scheduling Yes Group Manager Yes USB Plug & Play Yes Fail over Yes Booting Logo Image Yes No Signal Image Yes Local Network Sync Yes PIP Yes PBP Yes (4) Screen Share Yes Video Tag Yes (4) Play via URL Yes Tile Mode Setting Yes (Max. 15×15) Setting Data Cloning Yes SNMP Yes ISM Method Yes Auto Set ID Yes Status Mailing Yes Control Manager Yes Cisco Certi. Yes Crestron Inside Yes Smart Energy Saving Yes PM mode Yes Wake on LAN Yes Network Ready Yes Beacon Yes HDMI-CEC Yes SI Server Setting Yes webRTC Yes Pro:Idiom Yes Environment Conditions
Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 % Power
Power Supply AC 100-240 V~, 50/60 Hz Power Type Built-In Power Power Consumption
Typ./Max. 440 W / 570 W Smart Energy Saving (70%) 308 W DPM 0.5 W Power off 0.5 W BTU (British Thermal Unit) 1,501 BTU/Hr (Typ.), 1,945 BTU/Hr (Max) OPS Compatibility
OPS Type Compatible No OPS Power Built In No Software Compatibility
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare Connectivity
Input HDMI (3 (HDMI1/2 : HDCP 2.2/1.4, HDMI3)), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4 Pin Phone-jack), RJ45 (LAN), IR In, USB 2.0 Type A Output HDMI Out, Audio Out, RS-232C Out (4 Pin Phone-jack), Daisy Chain (Input HDMI, DP, DVI / Output HDMI) Sound
Speaker Yes (10W X 2) Language
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski Certification
Safety CB / NRTL EMC FCC Class “A” / CE / KC ErP Yes (NewErP) Accessory
Basic Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender Optional No
